10 stocked series

Wire Braid Fittings

Crimp and field-attachable hose ends for one- and two-wire braid hose (SAE 100R1/R2, EN 853). JIC, ORFS, NPTF, BSP, ORB and metric ends stocked in Fort Worth.

Standards: SAE J514 · SAE J1453 · EN 853 · DIN 2353

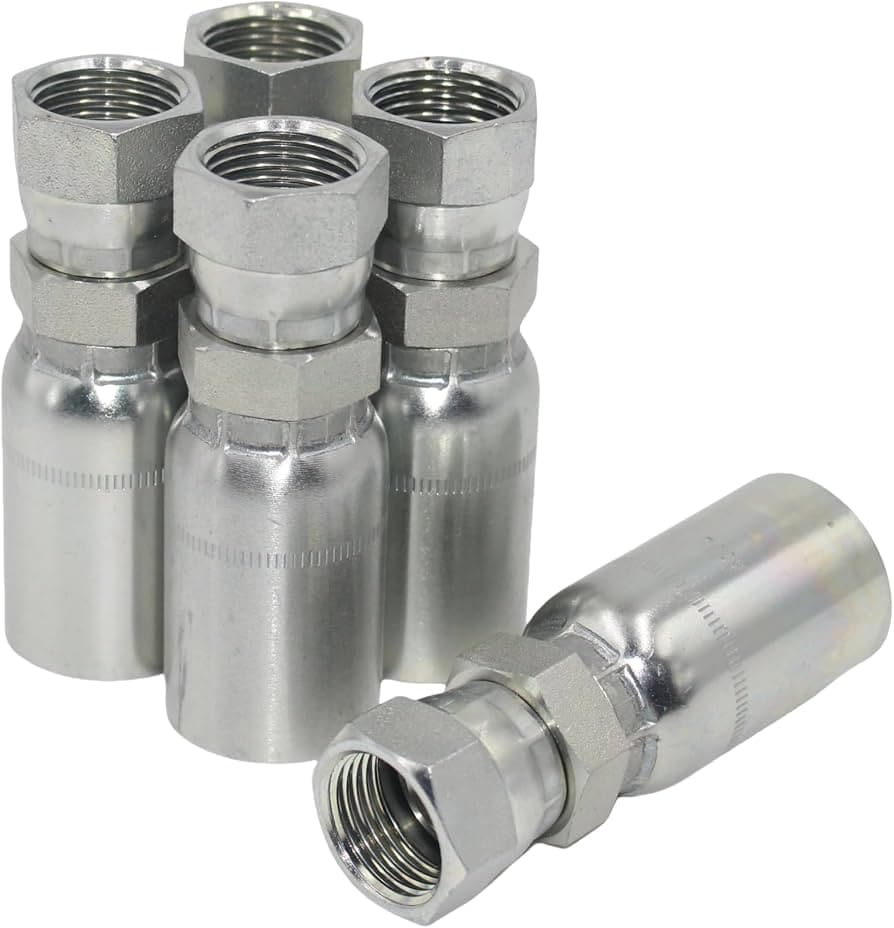

A1-WB-J37F

JIC 37° Female Swivel Hose End

The workhorse hose end of North American equipment: 37° flare seat, free-turning nut, no O-ring to lose. Crimped on 1- and 2-wire braid hose.

SAE J514Specs →

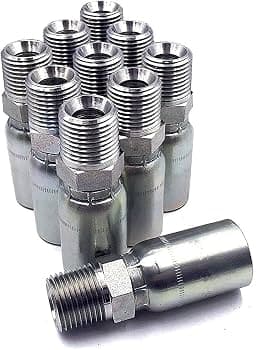

A1-WB-J37M

JIC 37° Male Rigid Hose End

Fixed male 37° flare end for terminating into female swivels and bulkheads.

SAE J514Specs →

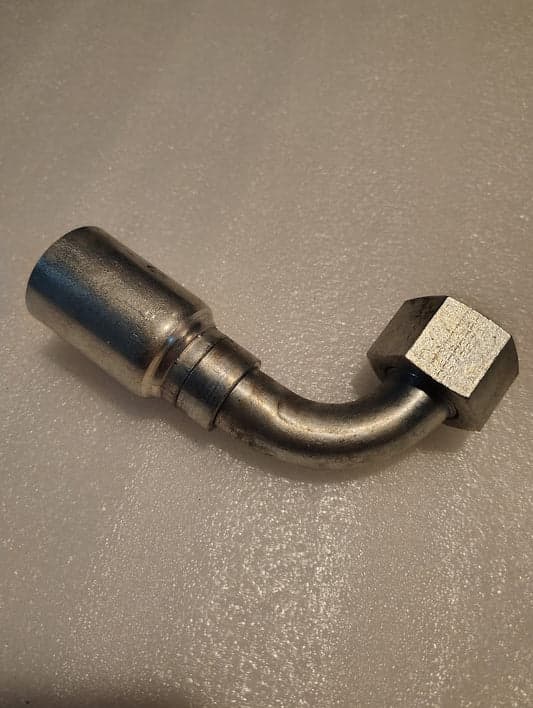

A1-WB-ORFS

ORFS Female Swivel Hose End

O-ring face seal end for leak-critical circuits and high-vibration equipment — the standard on most late-model excavators.

SAE J1453Specs →

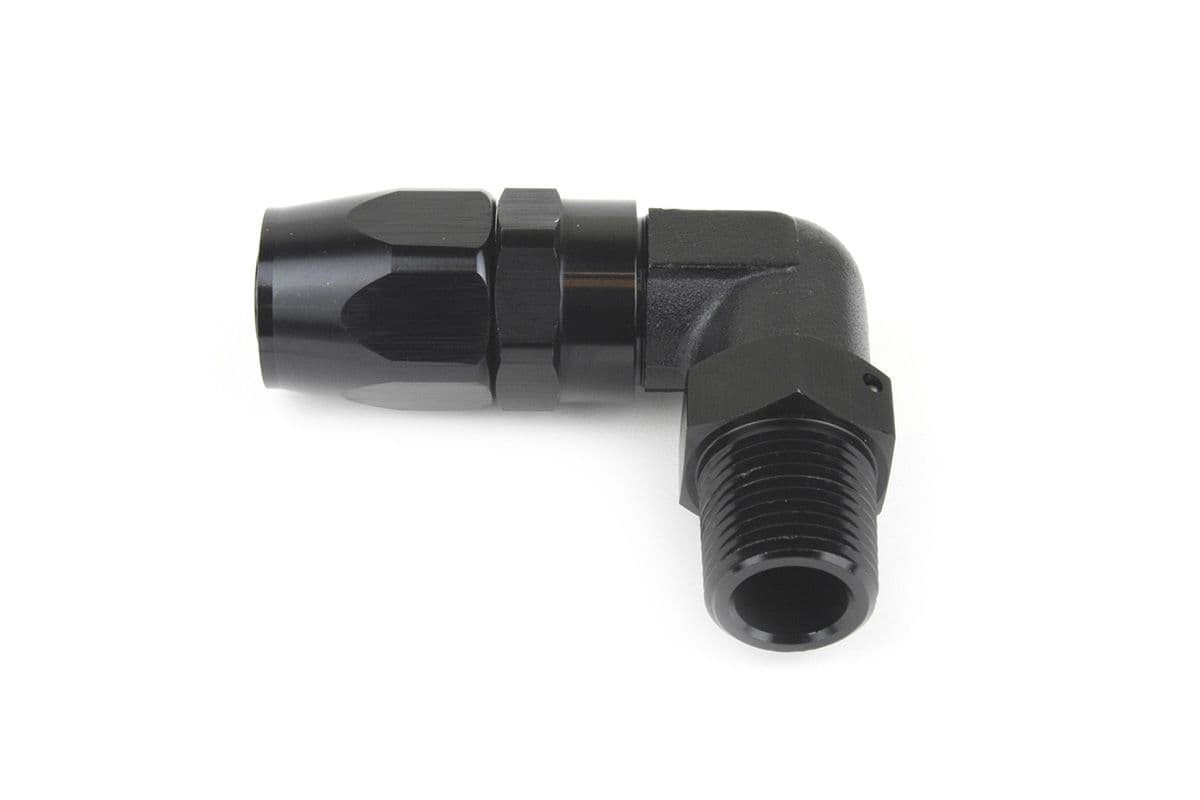

A1-WB-NPTM

NPTF Male Pipe Hose End

Tapered pipe-thread end for ports and older equipment. Dryseal form; use proper sealant practice, never over-wrench.

SAE J516Specs →

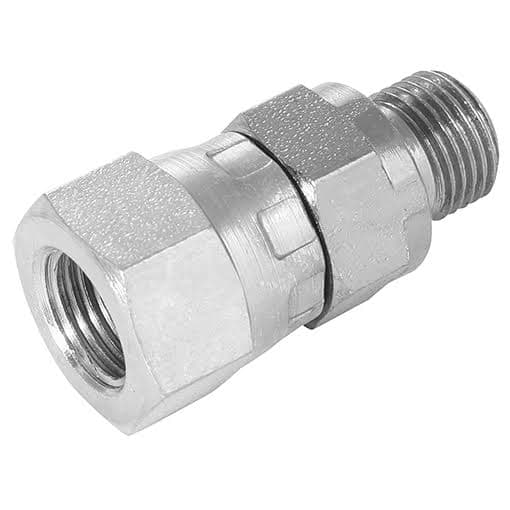

A1-WB-BSPF

BSPP Female Swivel 60° Cone

British parallel thread with 60° cone seat — the end most UK, European, and older Japanese equipment actually needs when 'the JIC won't seal.'

BS 5200 / ISO 228Specs →

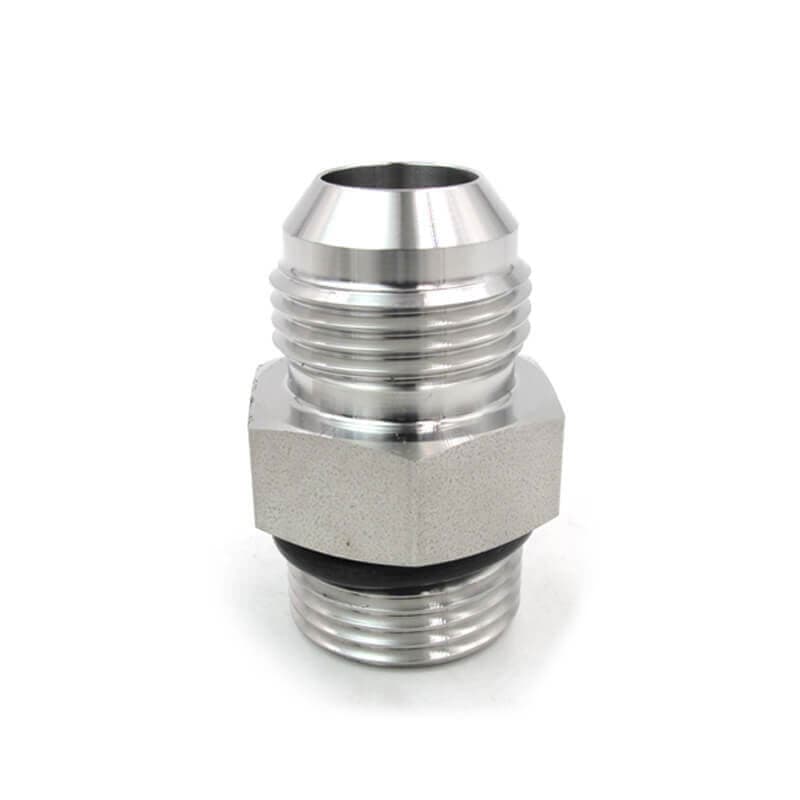

A1-WB-ORB

SAE O-Ring Boss (ORB) Male End

Straight-thread boss end sealing on an O-ring at the port face — the correct way into SAE ports, no tape, no taper.

SAE J1926Specs →

A1-WB-DKOL

DIN Metric Light (DKOL) 24° Female

24° cone light-series metric end with O-ring — for European equipment tube unions marked 'L'.

DIN 3865 / ISO 8434Specs →

A1-WB-DKOS

DIN Metric Heavy (DKOS) 24° Female

Heavy-series 24° cone metric end for 'S' series unions on high-pressure European circuits.

DIN 3865 / ISO 8434Specs →

A1-WB-J37F45

JIC 37° Female Swivel — 45° Elbow

Compact 45° sweep for tight routings that would otherwise kink a straight-end hose.

SAE J514Specs →

A1-WB-J37F90

JIC 37° Female Swivel — 90° Elbow

Full 90° elbow end that takes the bend so the hose doesn't have to — the cheapest hose-life upgrade there is.

SAE J514Specs →

Know your threads

Guides for the threads in this category.

Thread ID

JIC 37° Flare (SAE J514)

Identify →

Thread ID

O-Ring Face Seal — ORFS (SAE J1453)

Identify →

Thread ID

NPT / NPTF Tapered Pipe (SAE J516)

Identify →

Thread ID

BSPP — British Parallel (G thread)

Identify →
