9 stocked series

6-Spiral Fittings

Heavy interlock hose ends for six-spiral hose (SAE 100R13/R15). The fittings that hold at 5,000–6,000 psi constant working pressure with full safety factor.

Standards: SAE J517 · SAE J518 · EN 856

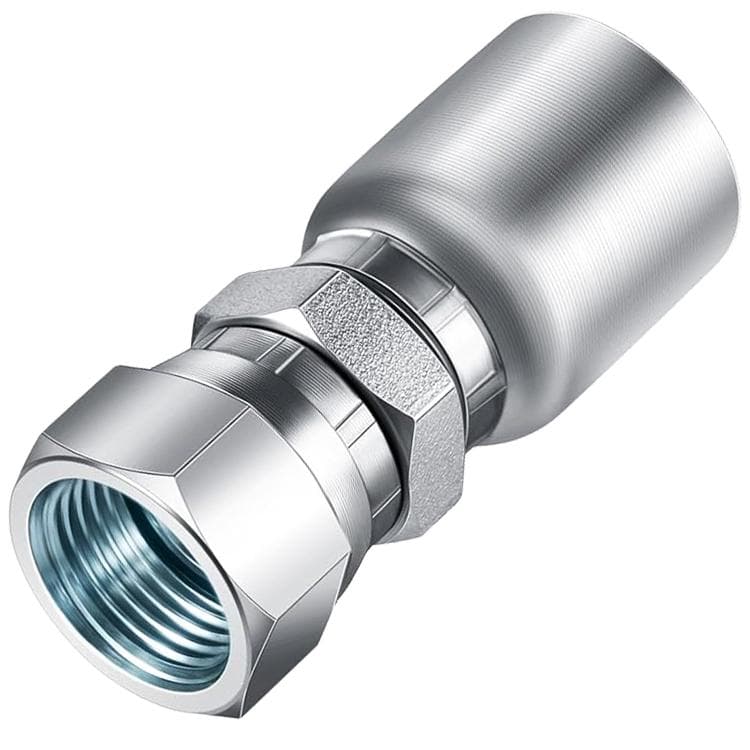

A1-6S-J37F

R13 Interlock JIC 37° Female

Six-spiral interlock end holding 5,000 psi working pressure with a 4:1 safety factor.

SAE J514Specs →

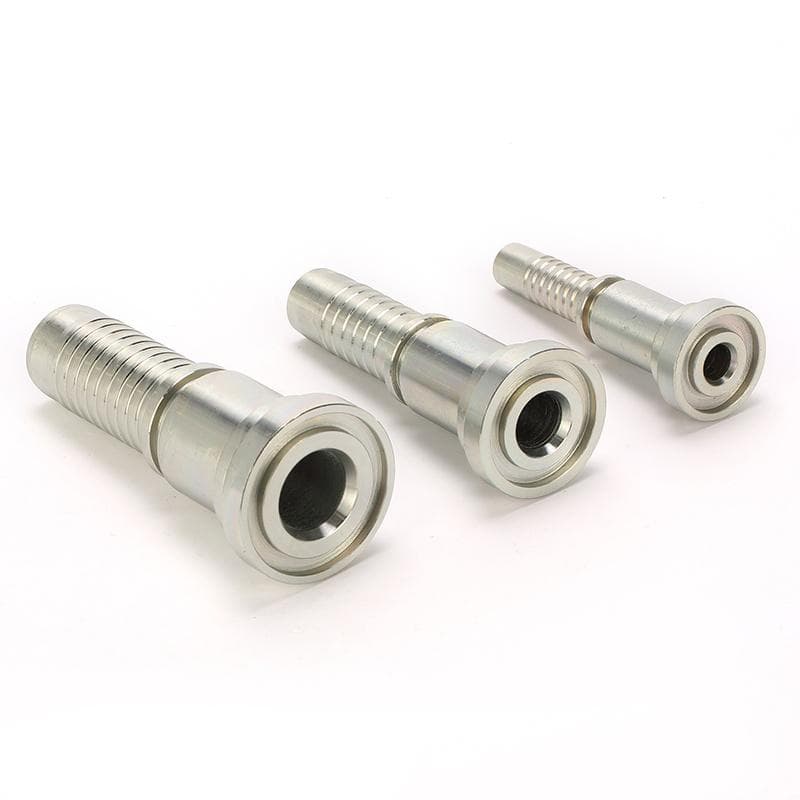

A1-6S-C61

R13 Interlock Code 61 Flange

Standard-flange interlock heads for six-spiral return and pressure mains.

SAE J518Specs →

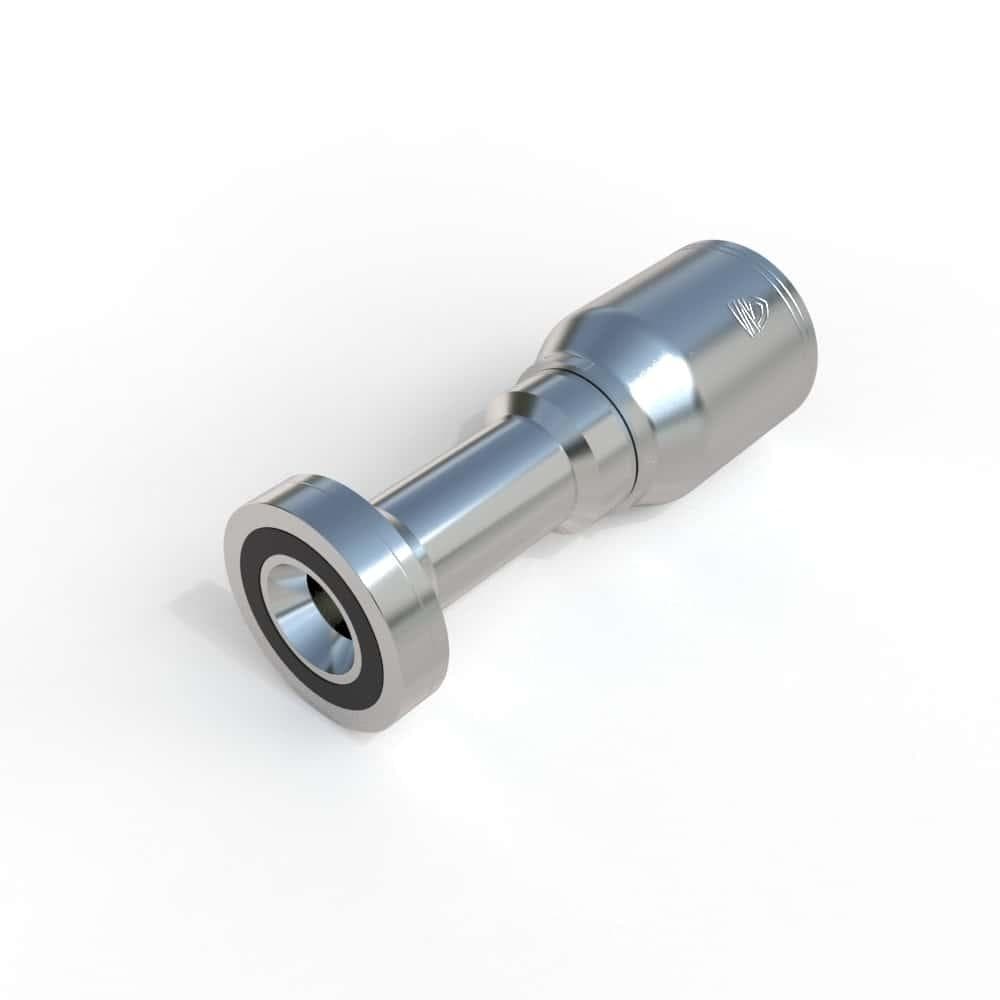

A1-6S-C62

R15 Interlock Code 62 Flange

The 6,000 psi combination: R15 hose with code 62 interlock flange heads.

SAE J518Specs →

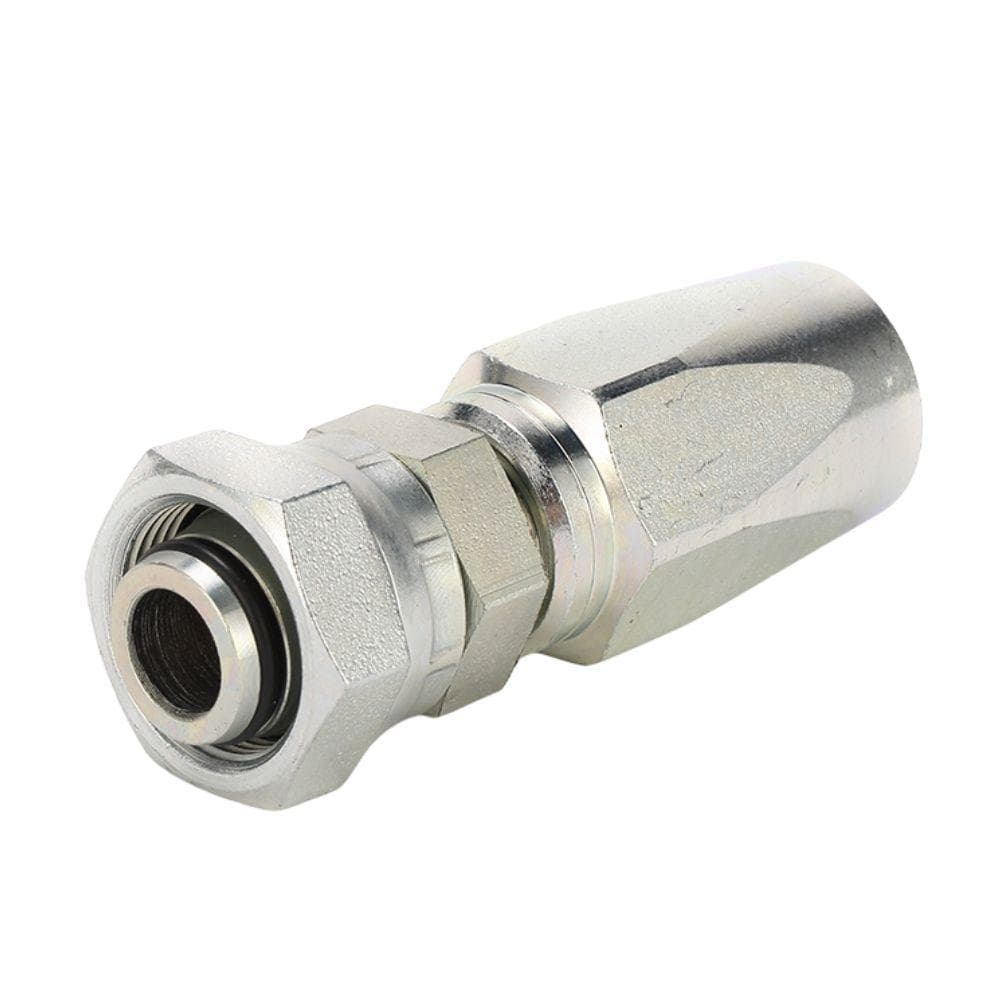

A1-6S-ORFS

R15 Interlock ORFS Female

Face-seal ends rated for 6,000 psi constant-pressure spiral hose.

SAE J1453Specs →

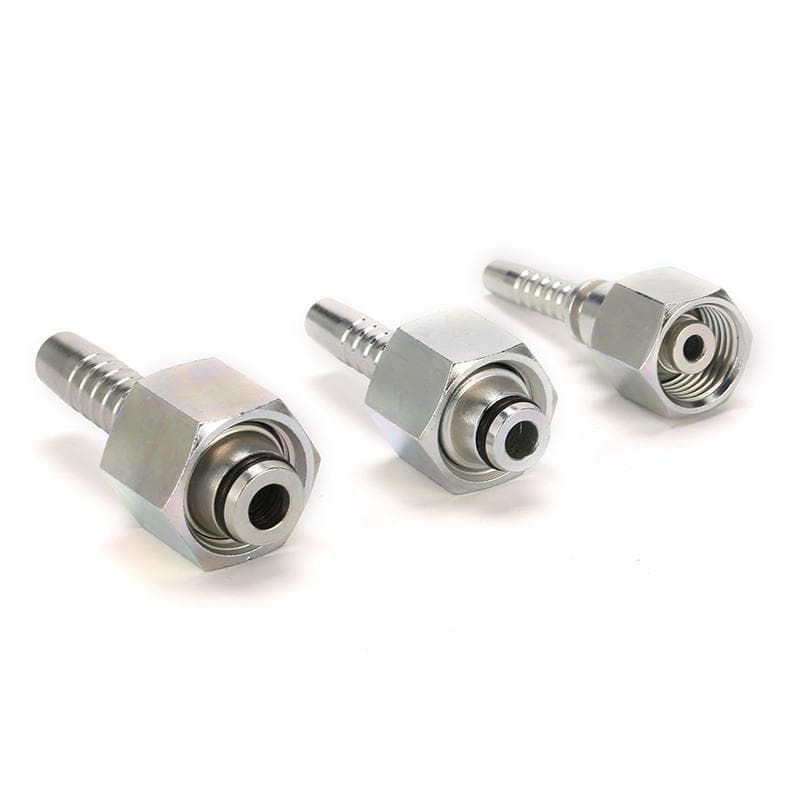

A1-6S-DKOS

6-Spiral Interlock DKOS Female

Heavy metric interlock ends for six-spiral hose on European heavy plant.

DIN 3865Specs →

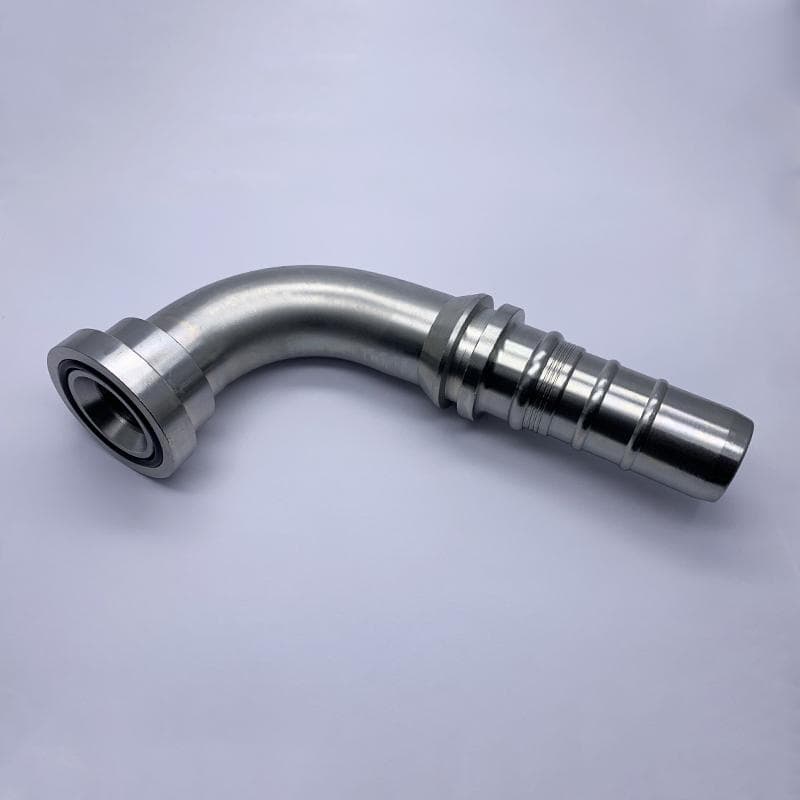

A1-6S-C62-90

6-Spiral Code 62 Flange — 90°

90° 6,000 psi flange heads that keep big hose out of harm's way on booms and crowd circuits.

SAE J518Specs →

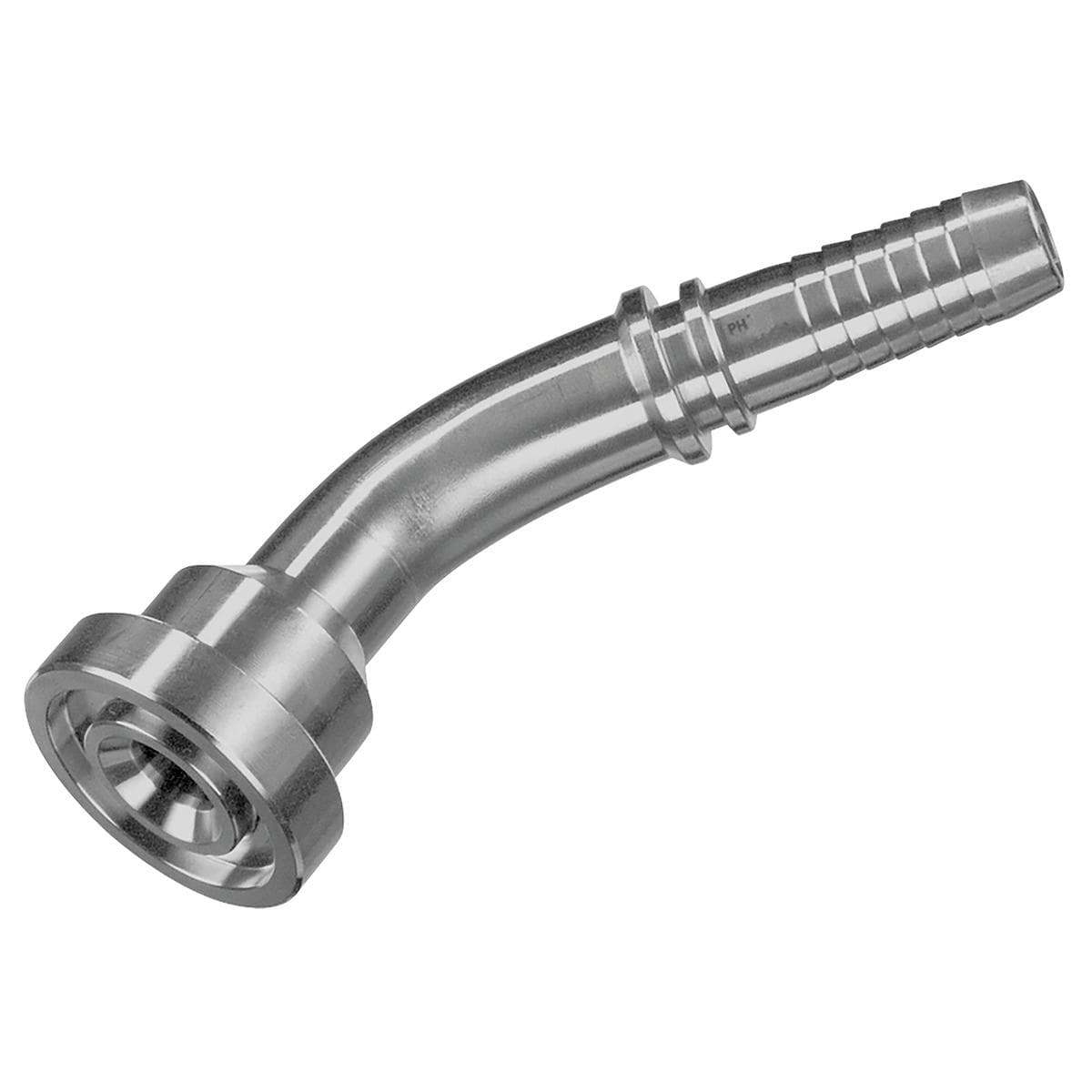

A1-6S-C61-45

6-Spiral Code 61 Flange — 45°

45° standard flange heads for six-spiral assemblies.

SAE J518Specs →

A1-6S-SP

R15 Interlock Standpipe

Metric standpipe ends for heavy bite-ring unions on 6,000 psi circuits.

DIN 2353Specs →

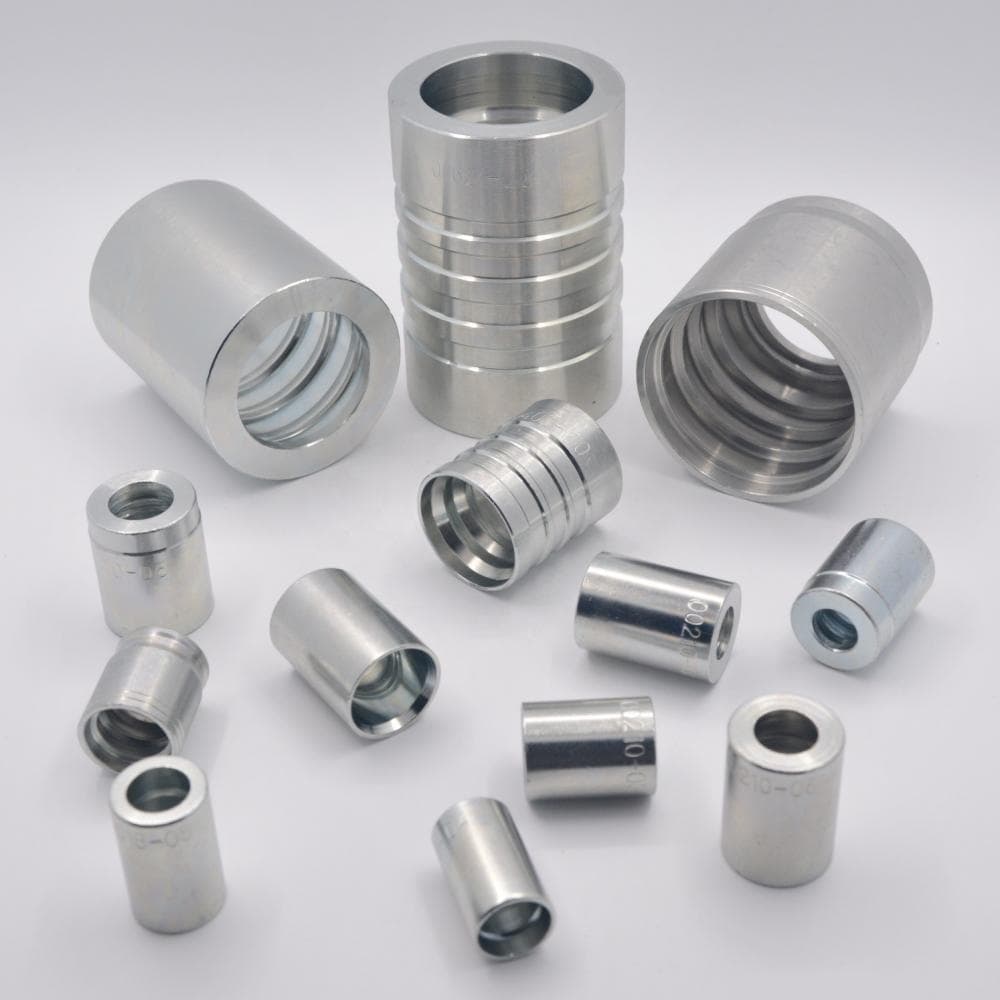

A1-6S-FER

Interlock Ferrule Sets

Matched interlock ferrules for four- and six-spiral crimping — sold with ends so the crimp spec always matches.

Manufacturer specSpecs →
